From £2,400 per straight flight, fitted
Stairs, balustrade and access
Escape stairs, feature stairs, handrail, balustrade and access platforms, designed to Part K, fabricated in-house and fitted by our own squad.
- Price from
- £2,400
- Lead time
- 15 working days
- Quote back
- 2 working days
Specification
What the machines take.
- Design
- Approved Document K, BS 5395, BS 6180
- Treads
- Chequer plate, open grating or folded plate
- Balustrade
- Bar infill, mesh, glass clamps or flat bar
- Finish
- Galvanised, powder coated, or both (duplex)
- Survey
- Site measure included within 30 miles
- Fitting
- Our own squad, usually one to two days
How we do it
Stairs are the most visible thing we make, and the one people use every day, so they get a site measure rather than a guess. We survey anything within 30 miles, draw it, and send the drawings back for approval with the calculations.

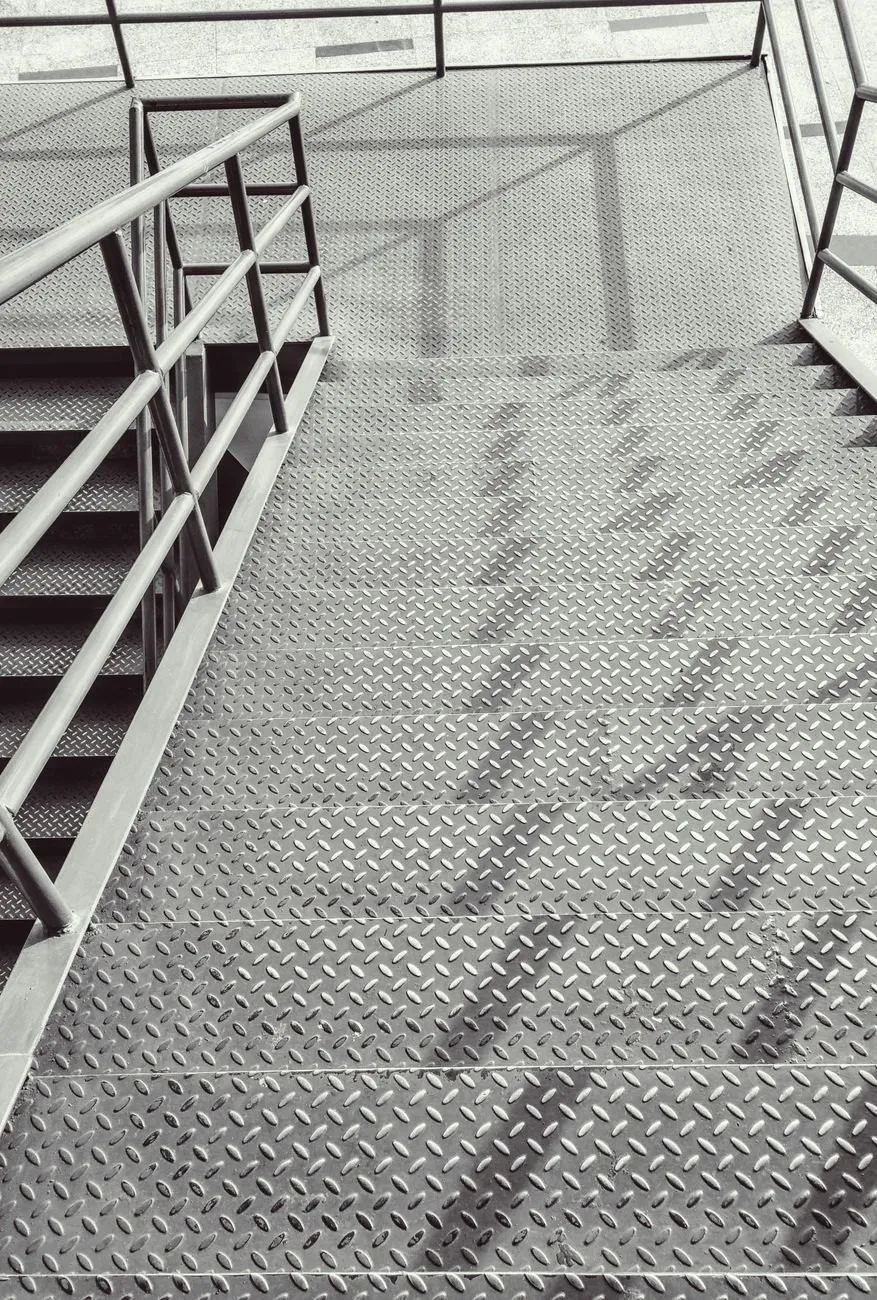

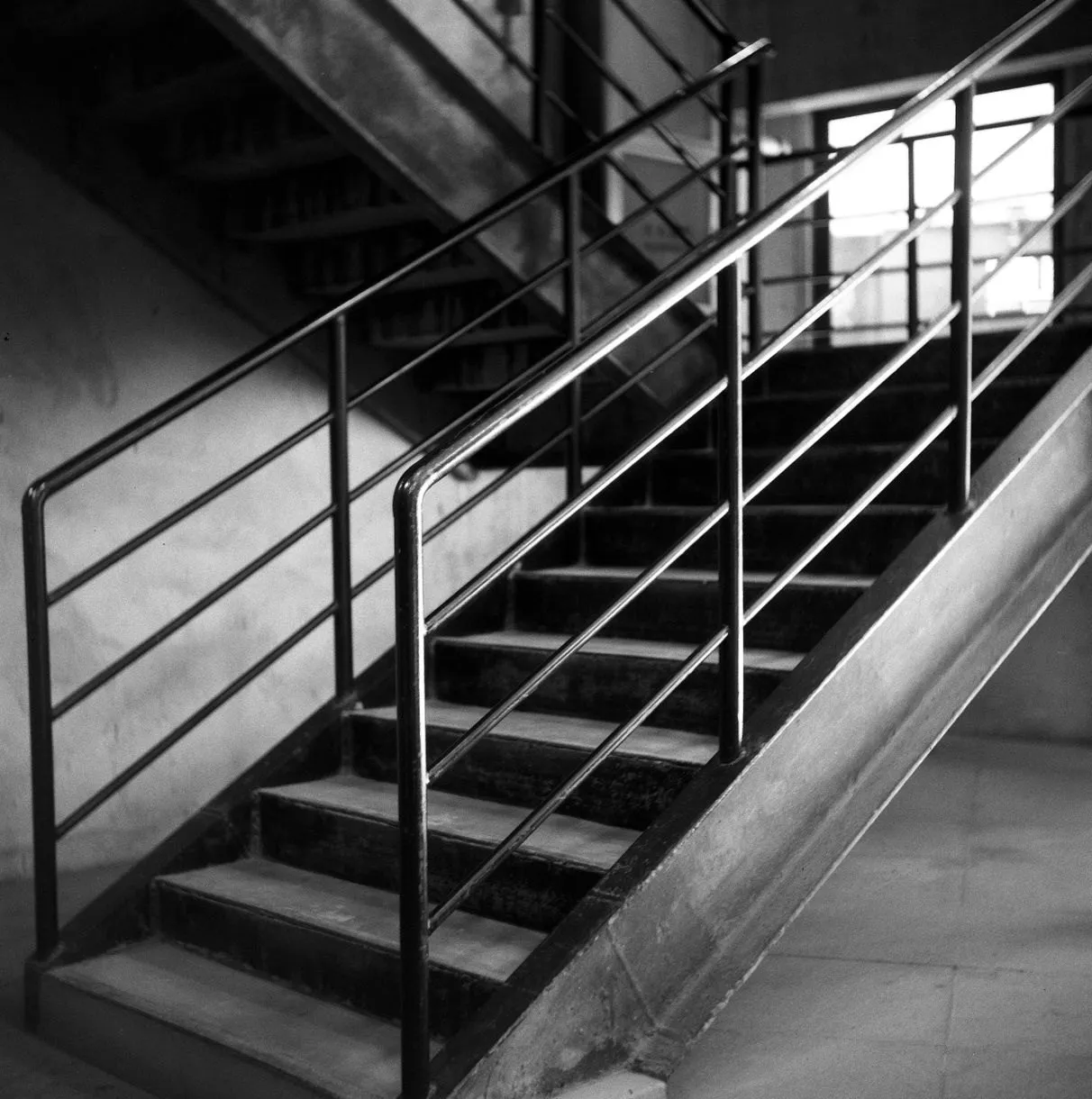

Escape stairs are usually galvanised flights with chequer-plate or grating treads and a bar-infill balustrade. Feature stairs inside a building are more often folded plate, fine-texture powder coat and a flat-bar handrail that looks drawn rather than bought.
Our own squad fits what we make. Most straight flights go in within a day, and a stair with landings in two.
Included as standard
- Site survey and measured drawings
- Structural calculations with the engineer we use
- Handrail heights and gaps checked to Part K
- Fitting, fixings and making good
“Four hundred laser-cut brackets a month, folded and powder coated, and I have not had to chase a delivery in two years. That is the whole review.”
Questions about stairs
Can you match an architect's detail?
Yes. We build to the drawn detail and send a sample of a tread, a newel or a handrail joint for approval first.
Galvanised or powder coated outside?
Both, if it is going to live outdoors for decades. Duplex finishing costs more once and nothing again for a long time.
Often ordered together
Other services
Laser cutting
A 6 kW fibre laser on a 3,000 × 1,500 mm bed. Mild steel to 25 mm, stainless to 20 mm, aluminium to 16 mm, cut to ±0.1 mm straight from your DXF.
From £45 per order of simple parts
5 working days
Press-brake bending
A 160-tonne CNC press brake with a six-axis back gauge. Folds up to 3.2 m in one hit, first-off parts measured before the batch runs.
From £1.20 per bend, plus £35 set-up
7–10 working days
Welding and fabrication
MIG, TIG and MMA in five bays, by welders coded to BS EN ISO 9606-1. Frames, brackets, chassis, tanks and one-off repairs at a £58 an hour shop rate.
From £58 per hour shop rate, £145 minimum
10–15 working days
