Structural steelwork · Liverpool
Fabricated to the drawing
Structural steel, sheet and plate for contractors across the North West. Priced in 2 working days. Steel on site in 15 working days.
£58 / hour shop rate, minimum charge £145
The reason a fold lands where it should
The brake overbends
Steel is elastic before it is plastic. Stop the ram on the angle you want and the part opens as soon as the load comes off. So we take it 3.8° past the drawing and let it come back.
Cold formed, 20 °C
S275JR, 6 mm
- Drawing
- 90.0°
- Ram takes it to
- 86.2°
- Springback
- 3.8°
- Ram travel
- 41.5 mm
Hot formed, 950 °C
S275JR, 6 mm, furnace at 950 °C
- Drawing
- 90.0°
- Ram takes it to
- 90.0°
- Springback
- 0.0°
- Ram travel
- 38.2 mm
Above about 900 °C there is no elastic recovery left to give back, so the punch angle is the finished angle. The right-hand press is the same drawing at 950 °C: scroll it and nothing moves when the ram lifts.
What leaves the shop
Four things, done properly, on our own floor.
-

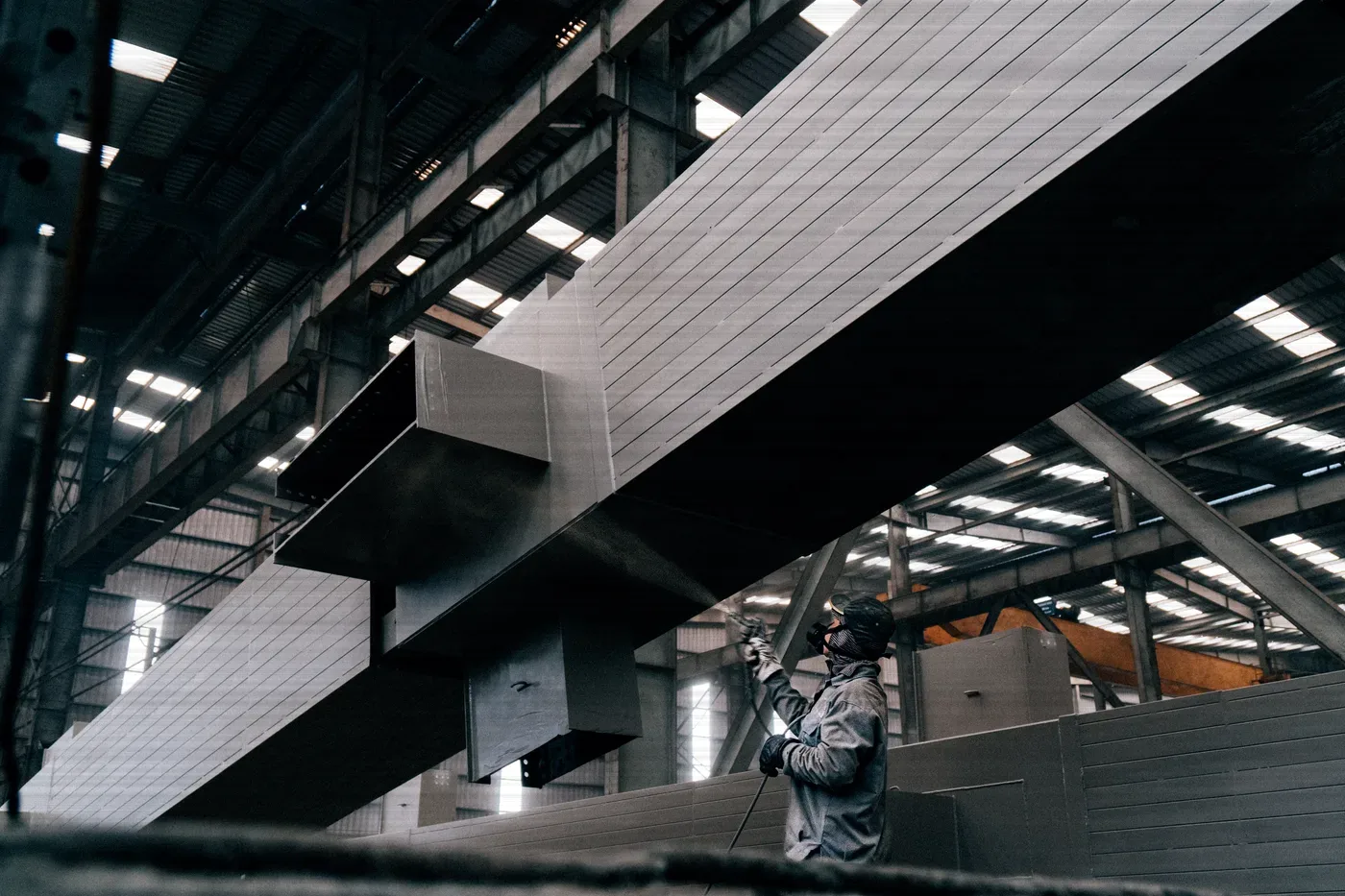

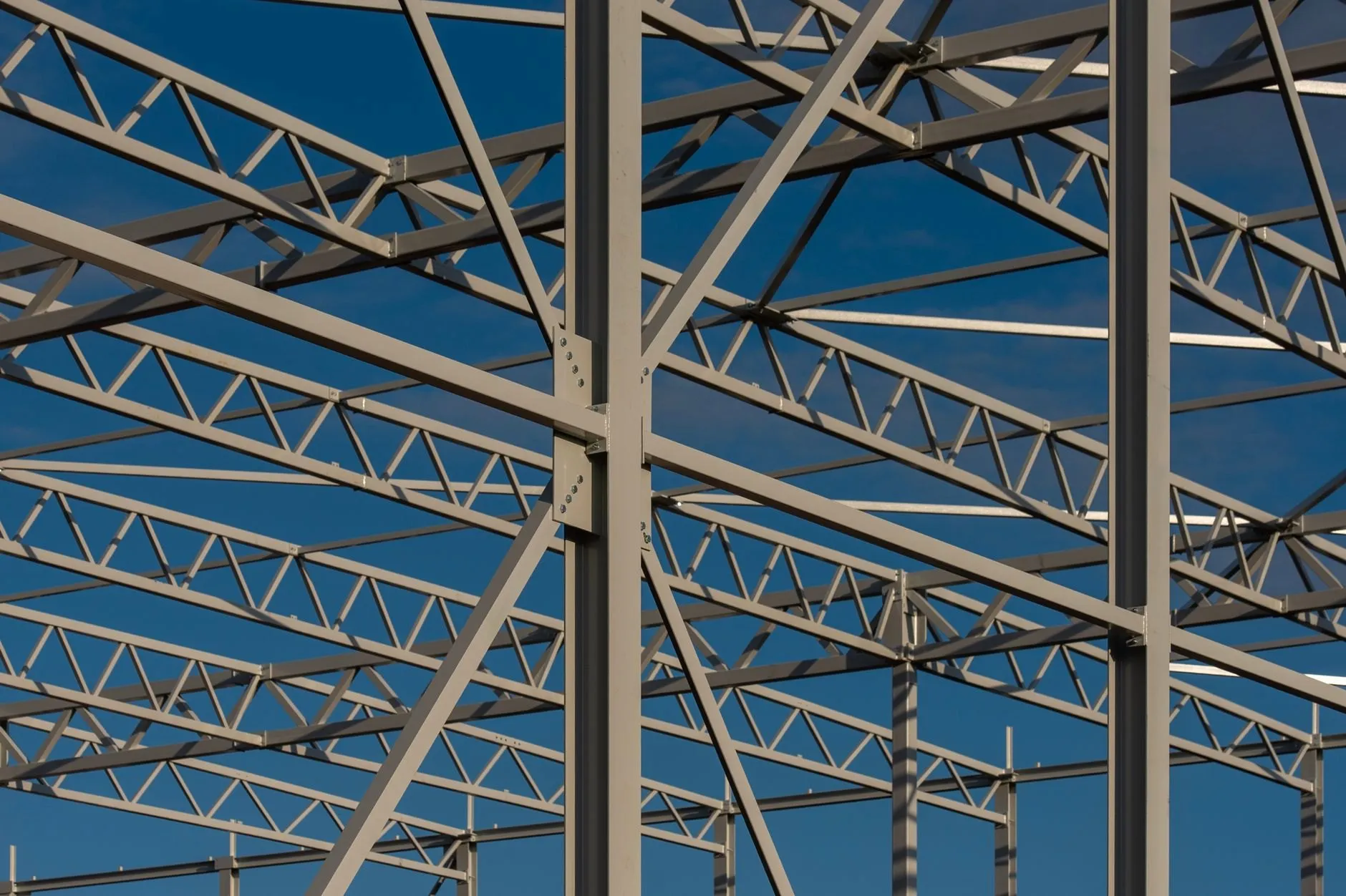

Structural steelwork

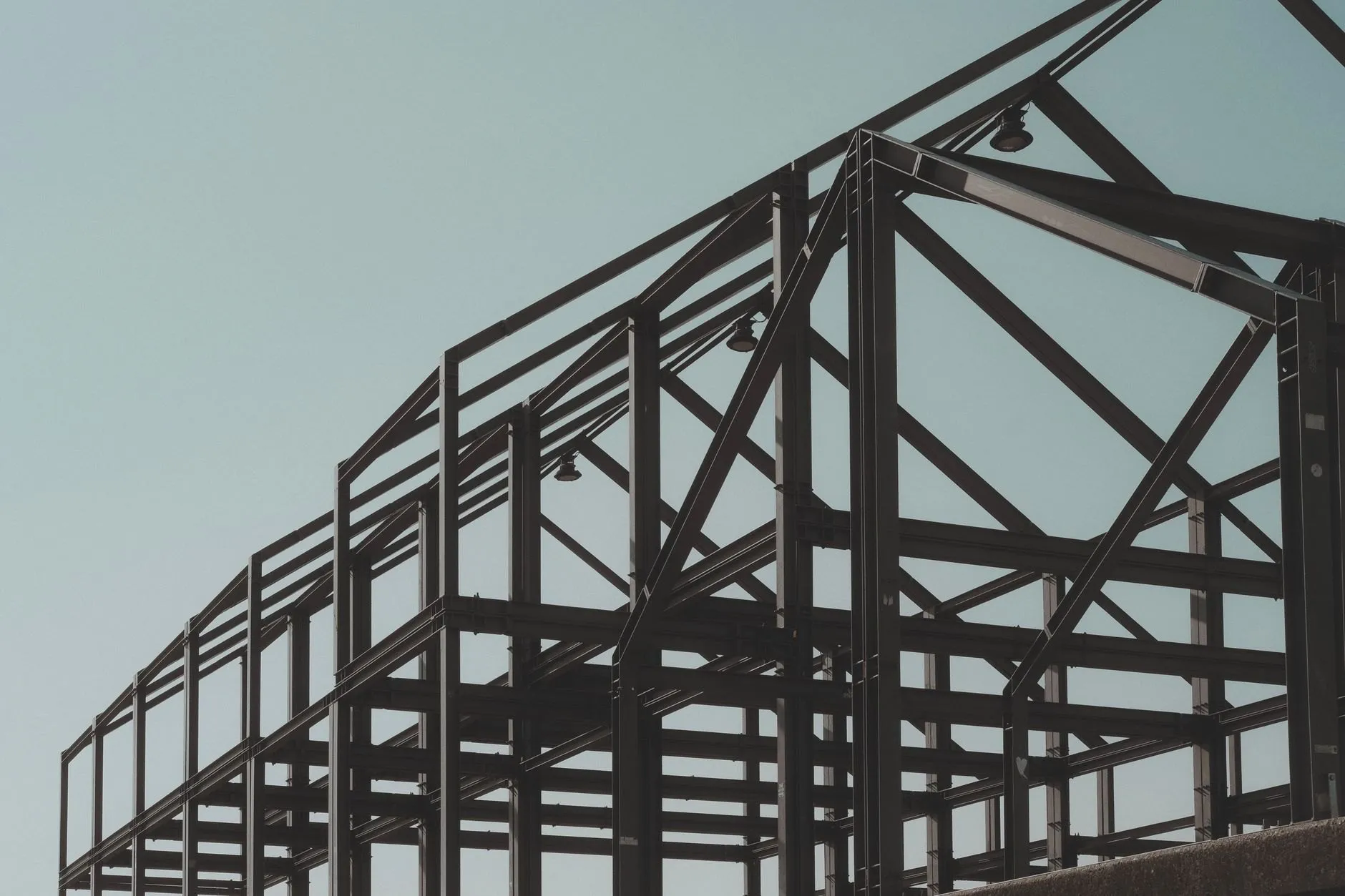

Beams, columns, bracing and baseplates, fabricated to BS EN 1090-2 execution class EXC2.
Up to 12 m single length, 5 tonne lift.
-
Sheet and plate

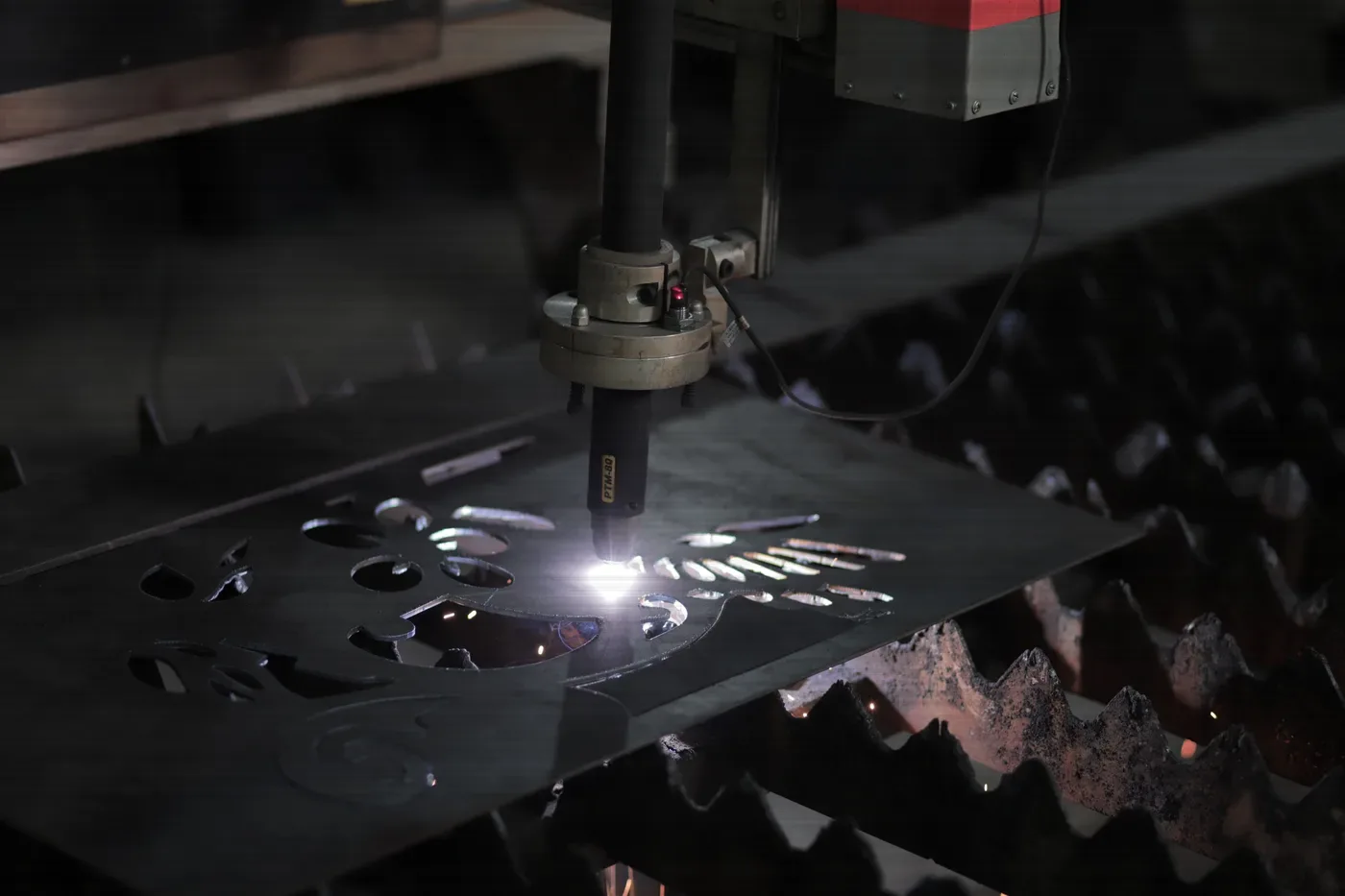

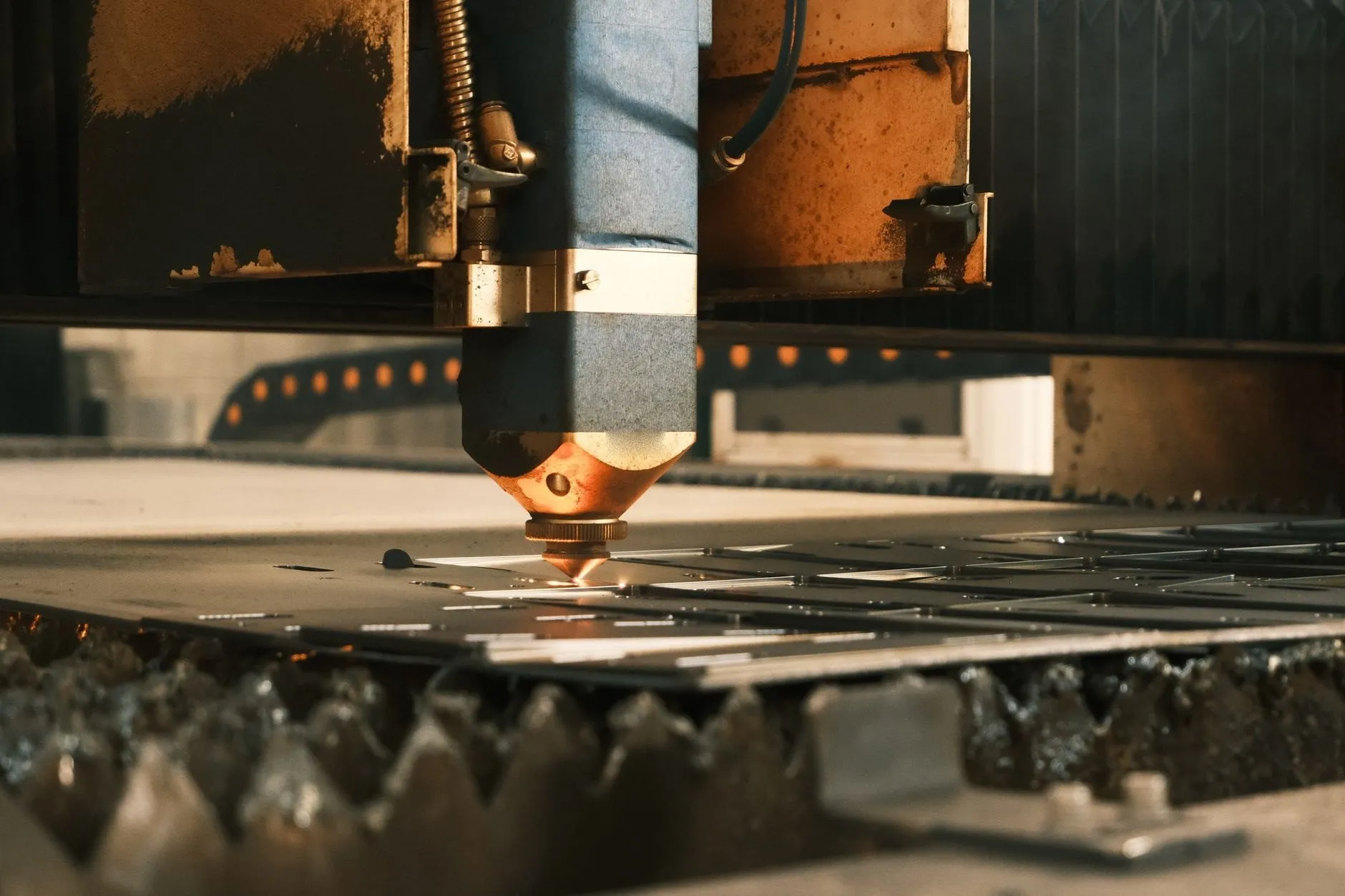

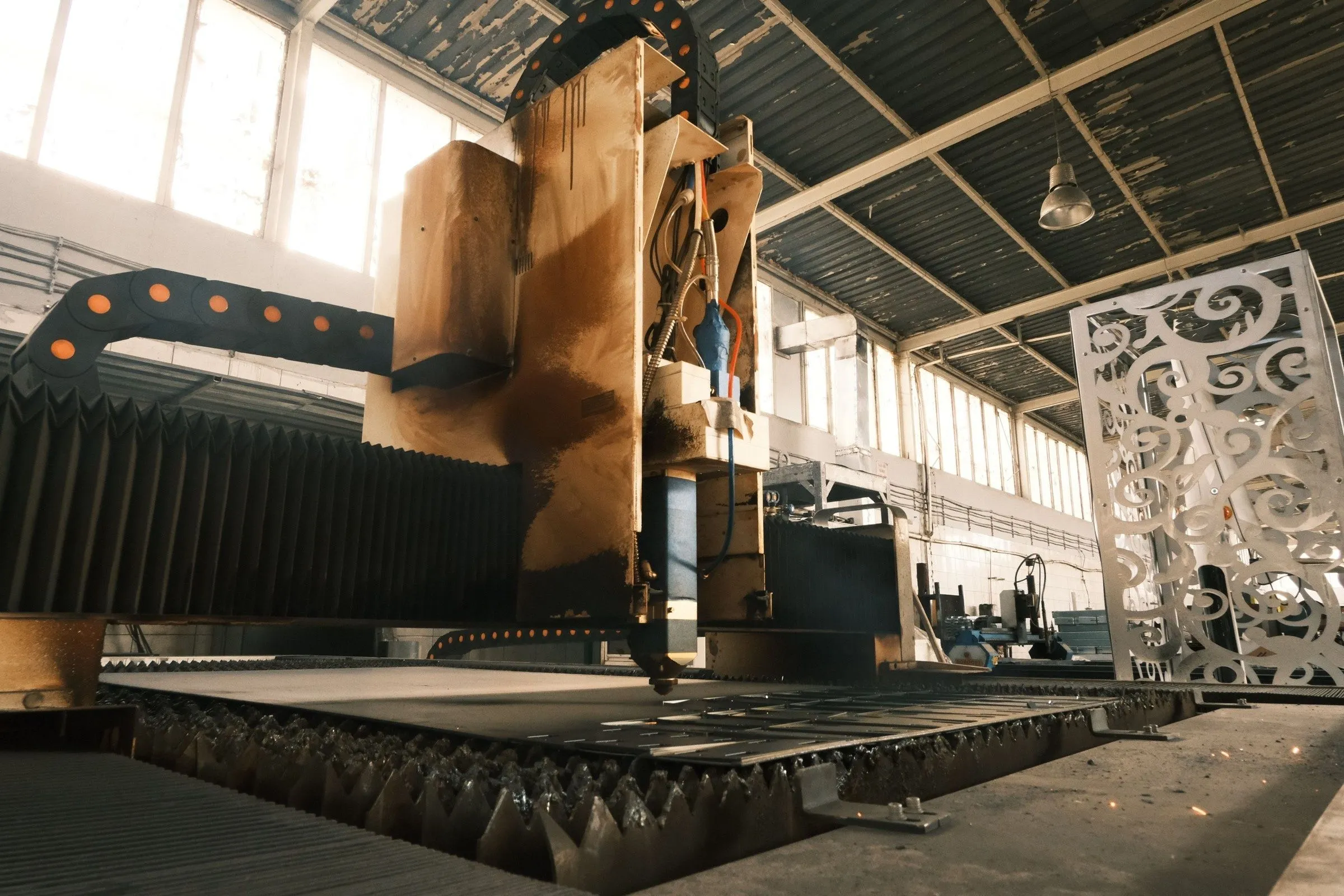

Plasma profiling to 25 mm and press-brake forming to 3.2 m in one hit.

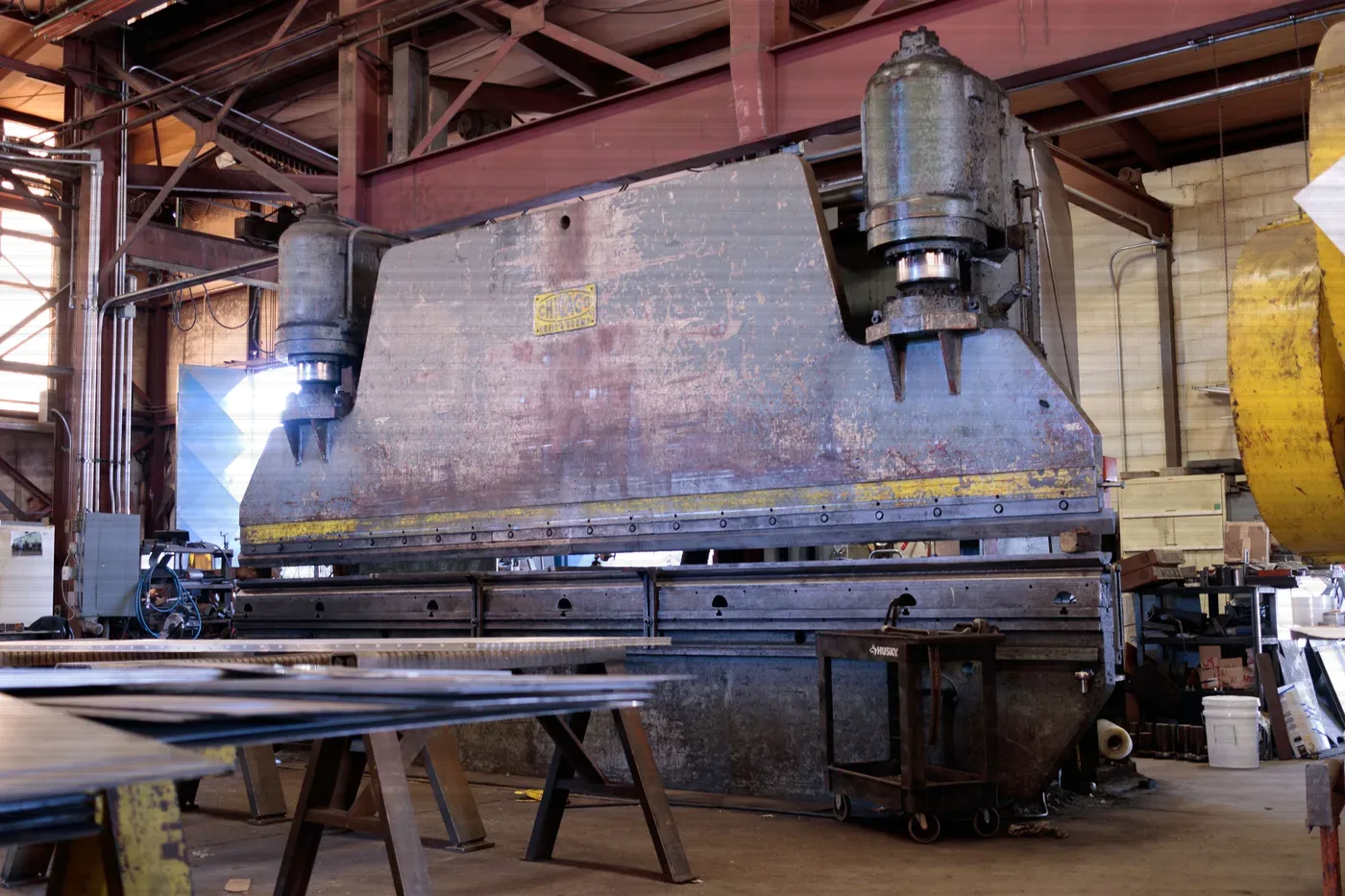

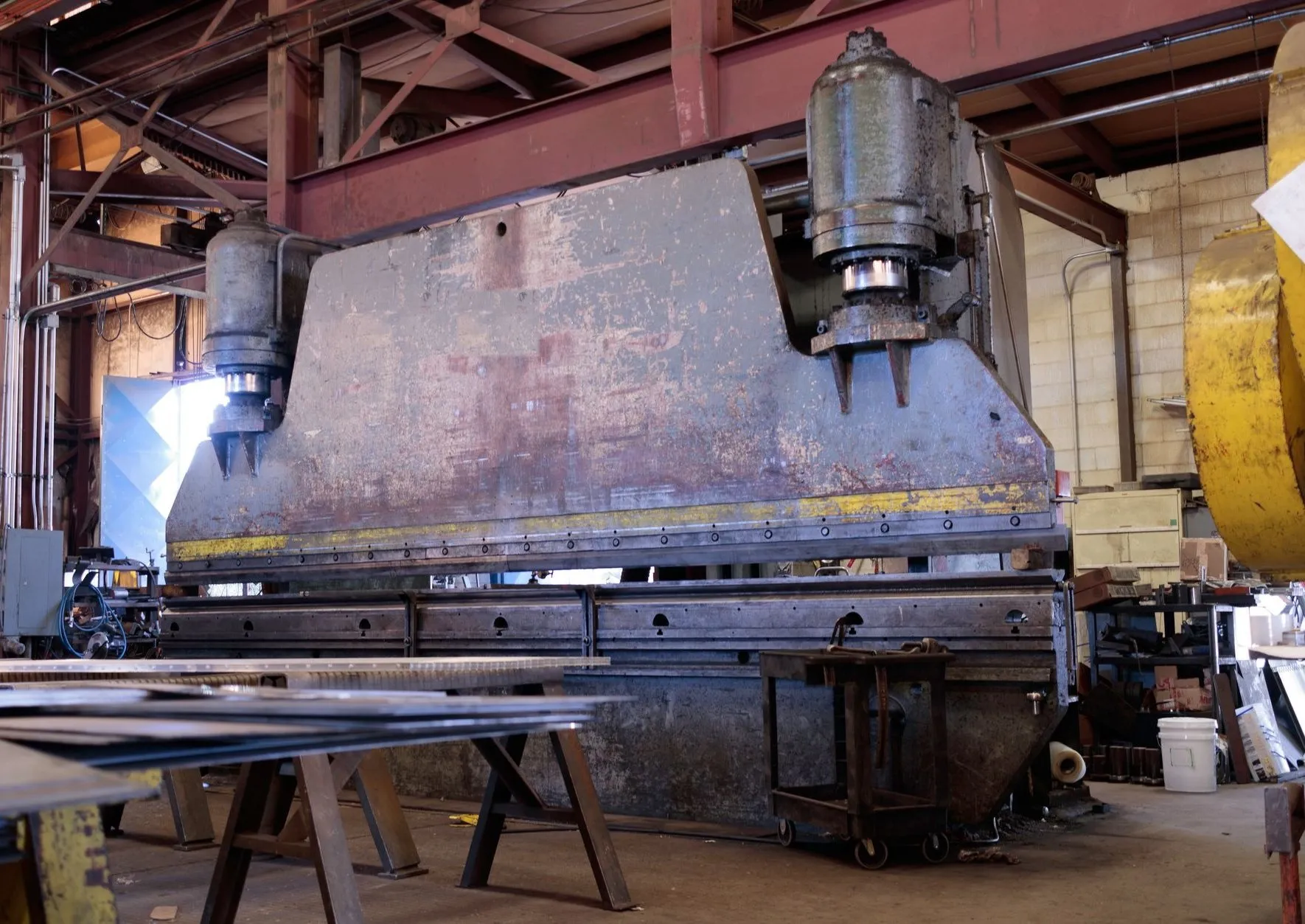

160 tonne brake, 50 mm vee as standard.
-

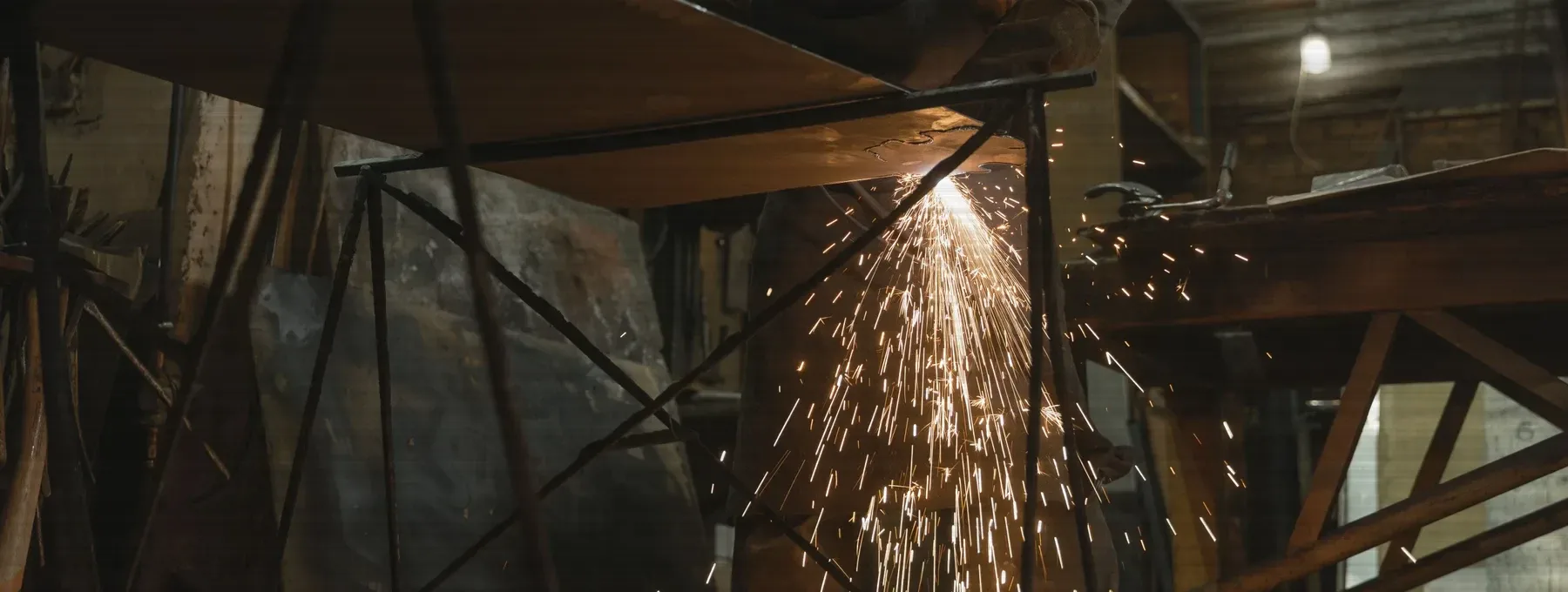

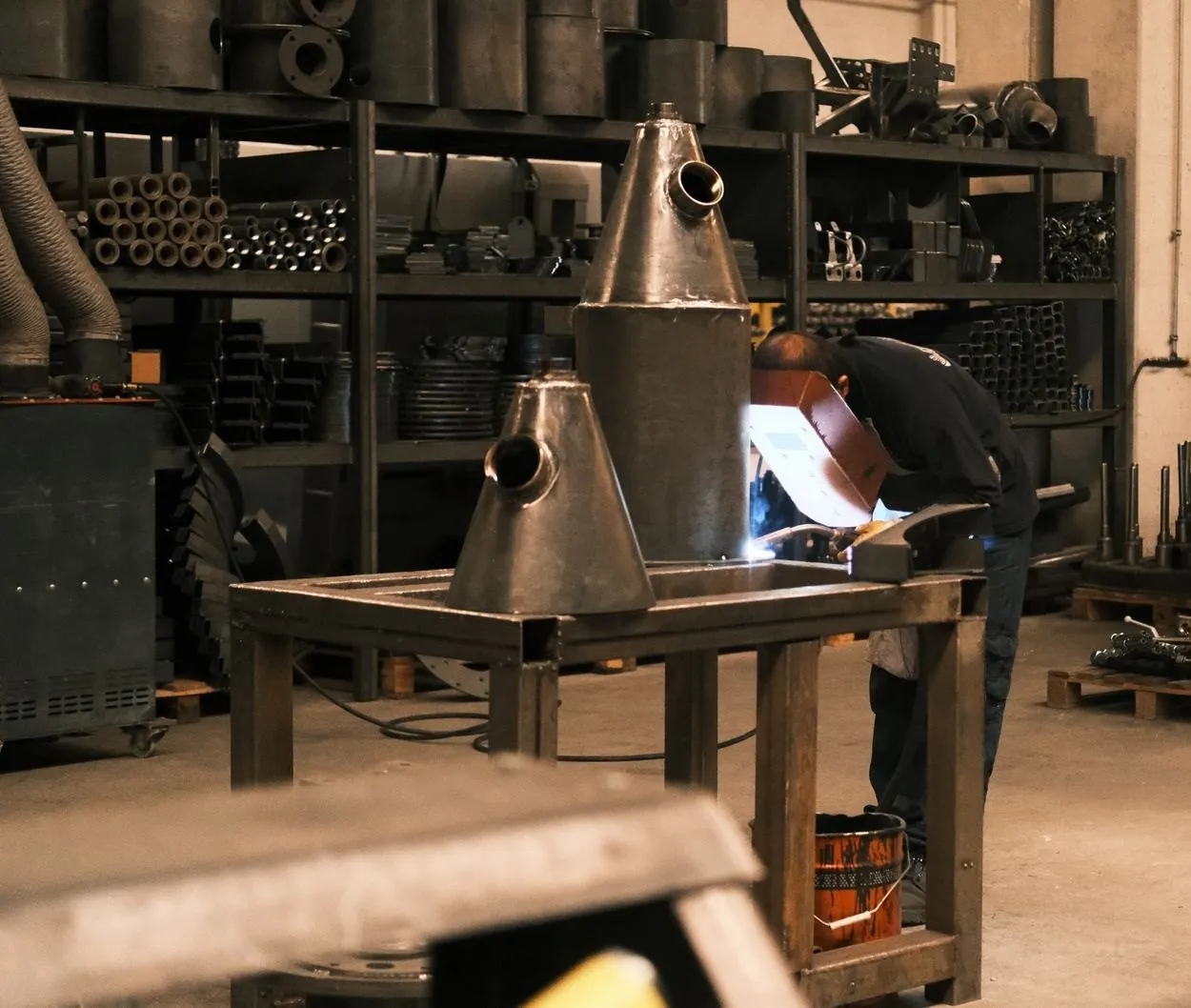

Welded fabrication

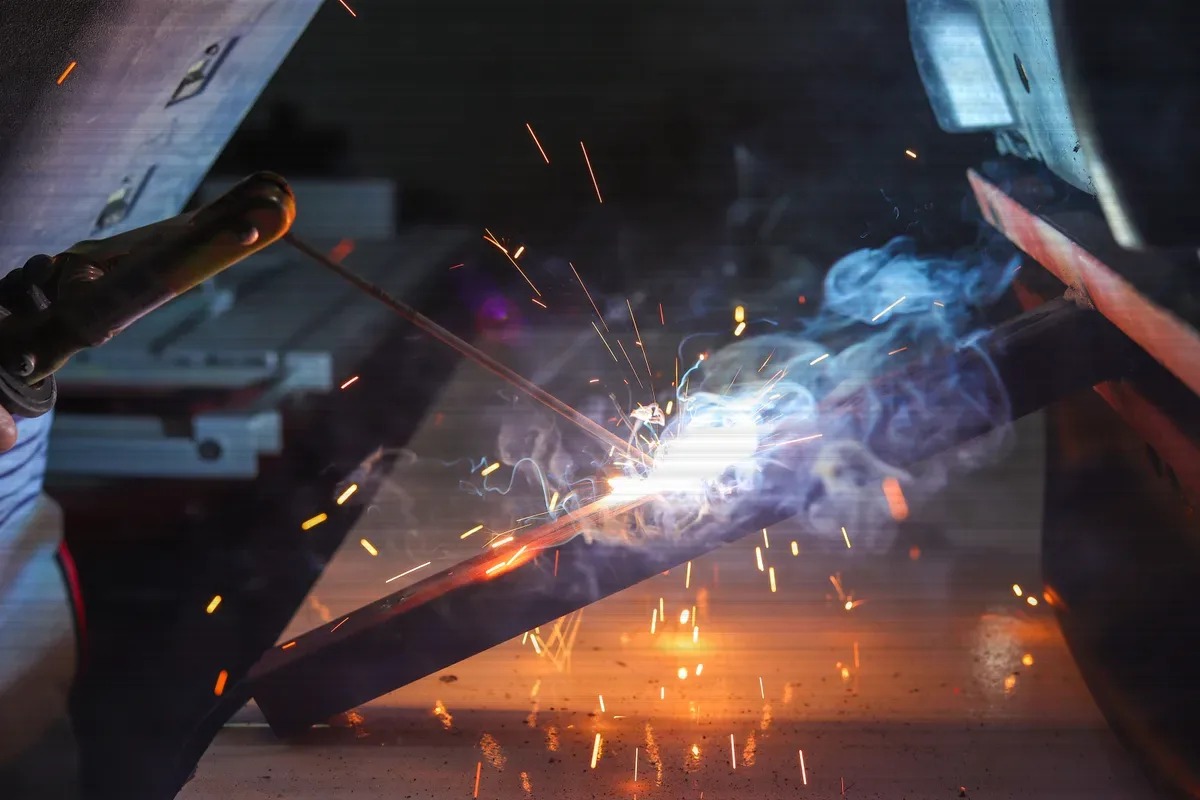

MIG, TIG and MMA by welders coded to BS EN ISO 9606-1, re-tested every two years.
Five bays, positional work to 6G.
-

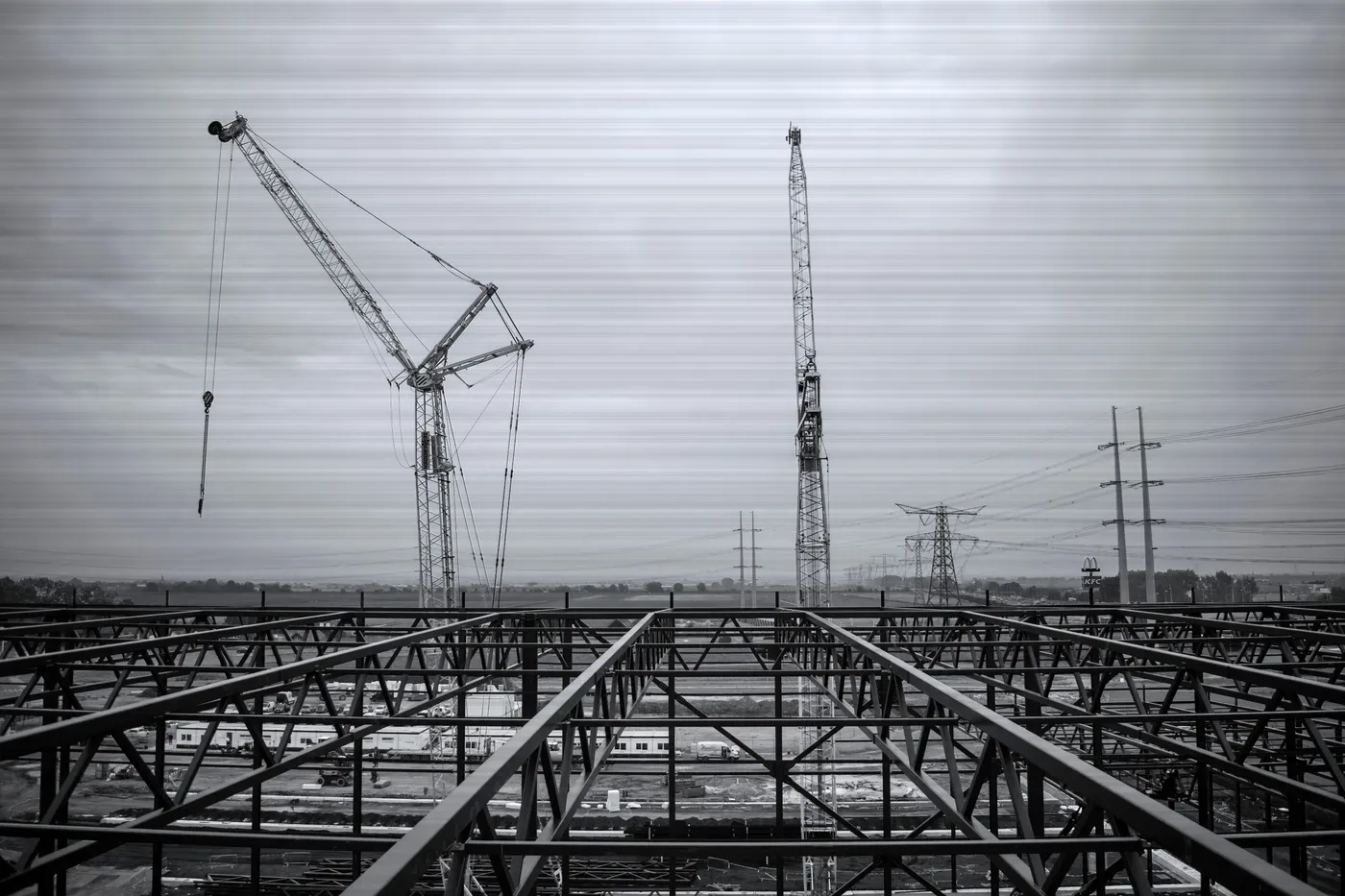

Site work

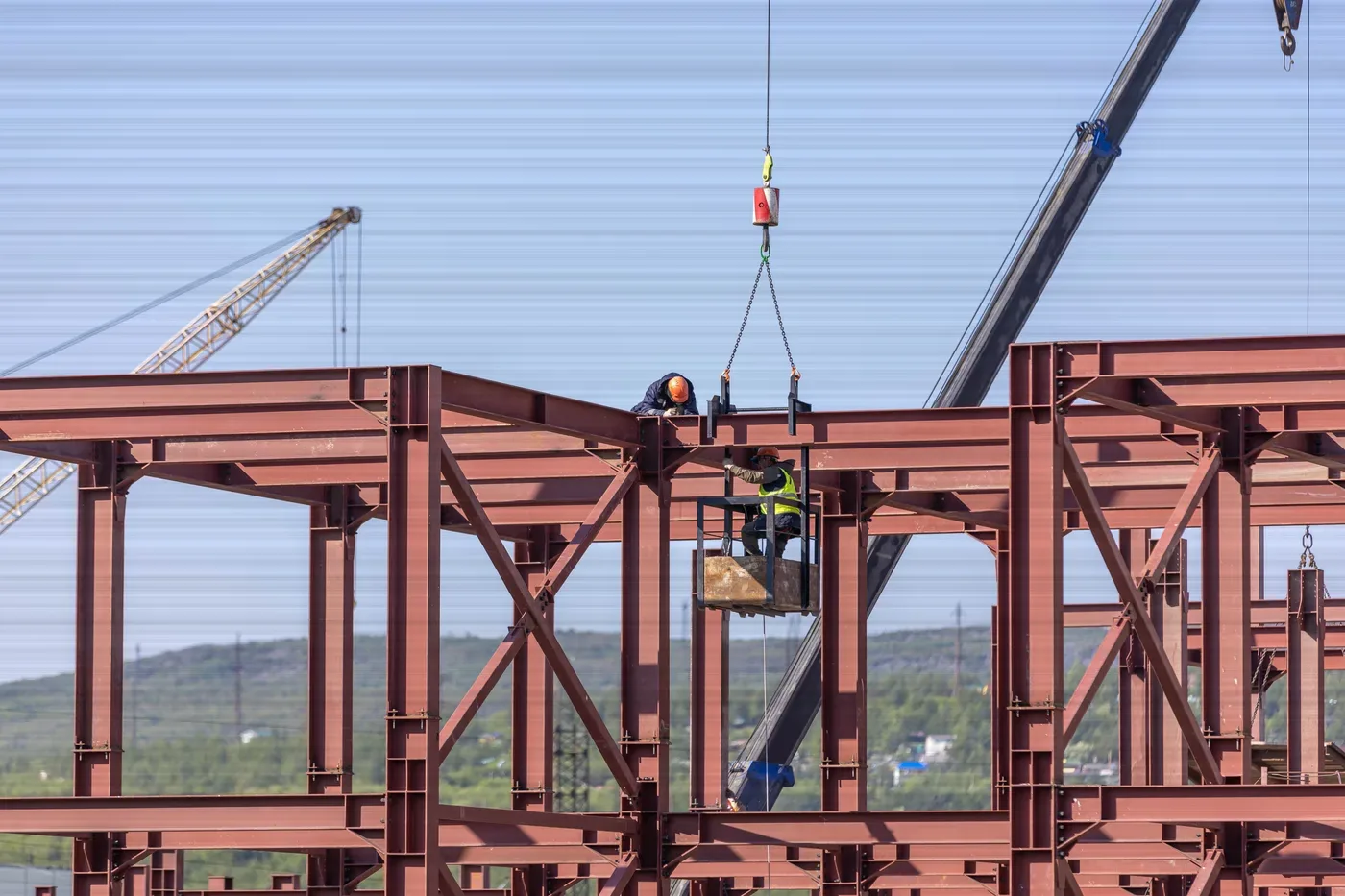

Erection, remedial steel, handrail and access platforms, installed by our own squad.
North West and North Wales.
Recent jobs
All jobs-
K-2418 · Food production unit, Runcorn
Mezzanine and access stair
Beams, columns and a 26-tread stair with a landing, blasted and primed in the shop, erected over two weekend shifts so the line never stopped.
11.4 t · 18 working days
-
K-2402 · Cold store, Ellesmere Port
Plant deck for a chilled store
Galvanised deck, chequer plate and a bolted handrail. Everything drilled in the shop; nothing was cut on site.
6.1 t · 12 working days
-
K-2389 · Recycling plant, Widnes
Ducting and transition pieces
Forty-two formed transitions in 3 mm sheet, each one a different developed pattern, profiled on the plasma and folded on the brake.
2.3 t · 9 working days
How a job runs
Six stages, 15 working days from an approved drawing to steel on your site.

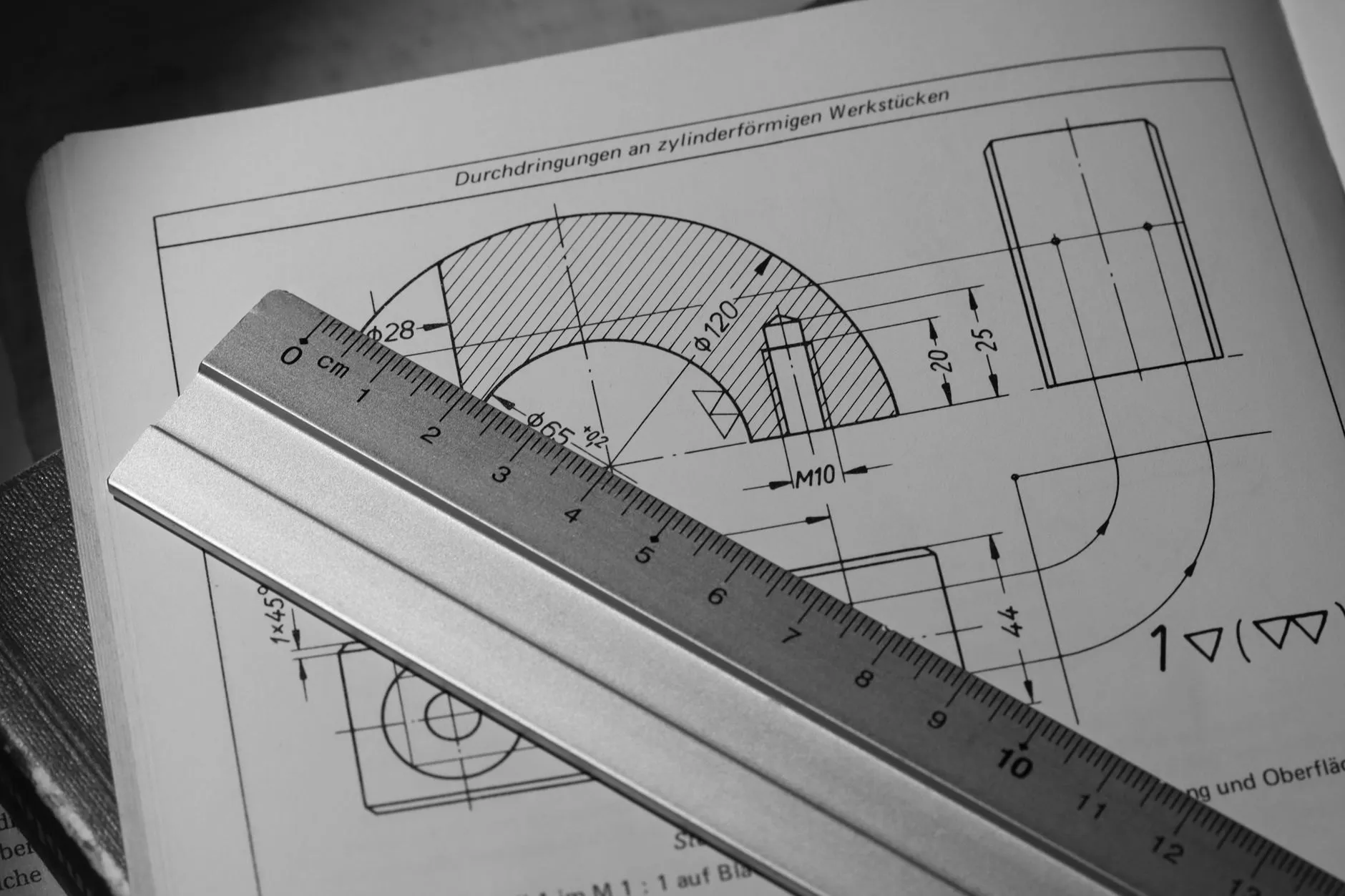

- 01 Drawing You send a drawing, a sketch or a sample. We mark up what is unclear and price it.
- 02 Approval Fabrication drawings back to you for signature. Nothing is cut before that comes back.

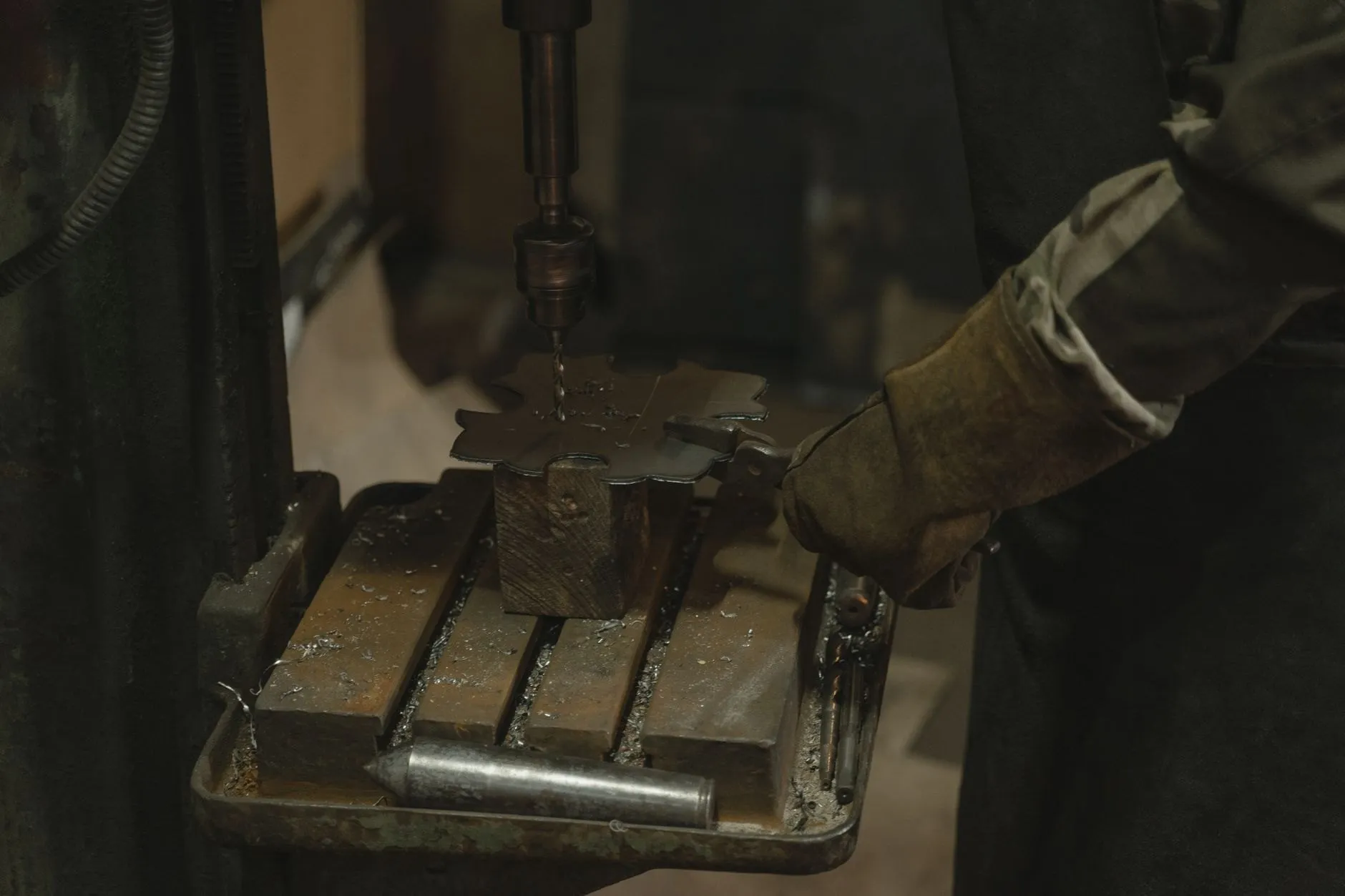

- 03 Cut and form Profiled, sawn, drilled and folded. Every part carries its mark and its cast number.
- 04 Weld and inspect Welded to procedure, then checked against the drawing before it leaves the bay.

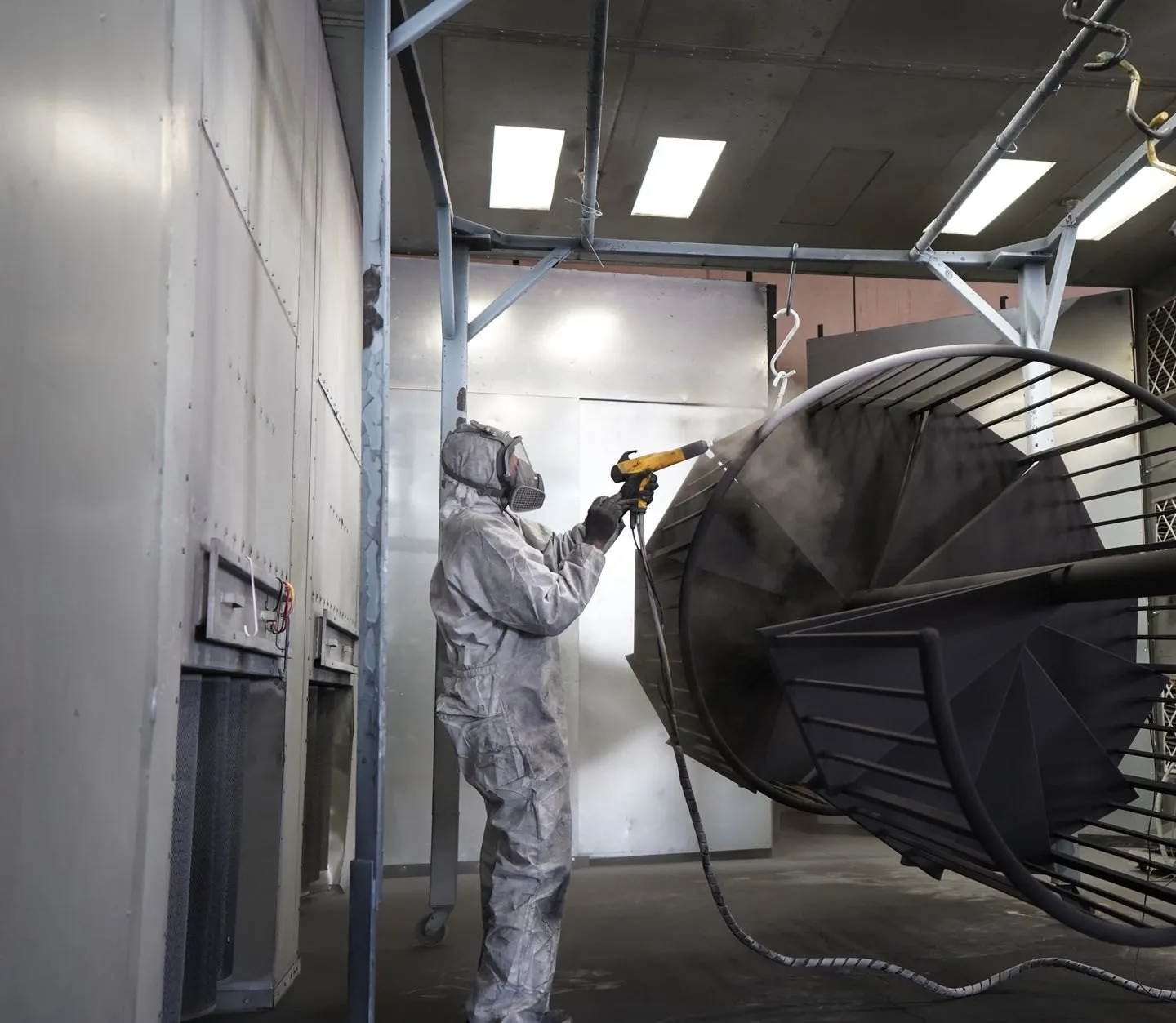

- 05 Finish Blasted and primed, or sent out for galvanising on a fixed three-day turn.
- 06 Deliver On our own wagon inside the North West, on a hiab where the site has no crane.
Shop notes
All notesSend us a drawing
A sketch on the back of a delivery note is enough to start. Priced in 2 working days.
